RT809F编程器—仁宝代工笔记本EC在线读写_KB9012_9010_9016_KB9022_联想_华硕_宏基_HP

  [复制链接]
 楼主| 发表于: 2015-11-27 08:48:26
| 显示全部楼层
faijiang 发表于 2015-11-26 17:50
我也遇到同样情形kb9022無法辨識,kb9012跟kb9022烧录脚位确定一样吗?
錯誤訊息:
"111:  引脚接触良好 ...

在原板子上飞线试过没有?
回复 支持 反对

使用道具 举报

发表于: 2015-11-27 15:44:44
| 显示全部楼层
admin 发表于 2015-11-27 08:47
请提供一份使用KB9022芯片的笔记本主板图纸,我们分析看看,谢谢。

V3-572G
第27页 原板上料号是kb9022Q C

z5wah_ea50_hb_la-b161pr10_0304.rar

1.09 MB, 下载次数: 2085, 下载积分: 金钱 -10

回复 支持 反对

使用道具 举报

发表于: 2015-11-27 15:45:46
| 显示全部楼层
admin 发表于 2015-11-27 08:48
在原板子上飞线试过没有?

就是在版上飞线的
回复 支持 反对

使用道具 举报

 楼主| 发表于: 2015-11-27 15:53:03
| 显示全部楼层
faijiang 发表于 2015-11-27 15:45
就是在版上飞线的

与ISP有关的脚位是一样的,请问你的板子能否发给我测试,或者告诉我此板的淘宝链接?
回复 支持 反对

使用道具 举报

发表于: 2015-12-14 17:15:14
| 显示全部楼层
第8脚芯片不良是什么情况,主板33脚由供电
回复 支持 反对

使用道具 举报

 楼主| 发表于: 2015-12-15 09:29:02
| 显示全部楼层
412001207 发表于 2015-12-14 17:15
第8脚芯片不良是什么情况,主板33脚由供电

点“ISP自动识别”,不是点“智能识别”。
回复 支持 反对

使用道具 举报

发表于: 2016-4-12 15:16:36
| 显示全部楼层
thanx admin ... i understand ,, but i do not understand which pin give i 3.3volt ,,, my motherboard is LA-B511P ,,,, AND my ec is kb9022 ,,, plz tell me 3.3volt keybord pin or ec pin ,, plzz help and sooo thanx for reply
回复 支持 反对

使用道具 举报

 楼主| 发表于: 2016-4-12 15:43:00
| 显示全部楼层
mbm 发表于 2016-4-12 15:16
thanx admin ... i understand ,, but i do not understand which pin give i 3.3volt ,,, my motherboard  ...

After the AC-DC adpter is plug in,it can supply the 3.3V to EC.
回复 支持 反对

使用道具 举报

发表于: 2016-4-13 03:13:59
| 显示全部楼层

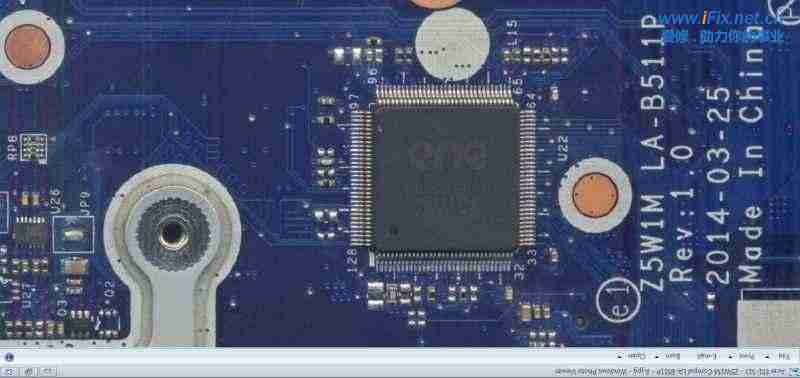

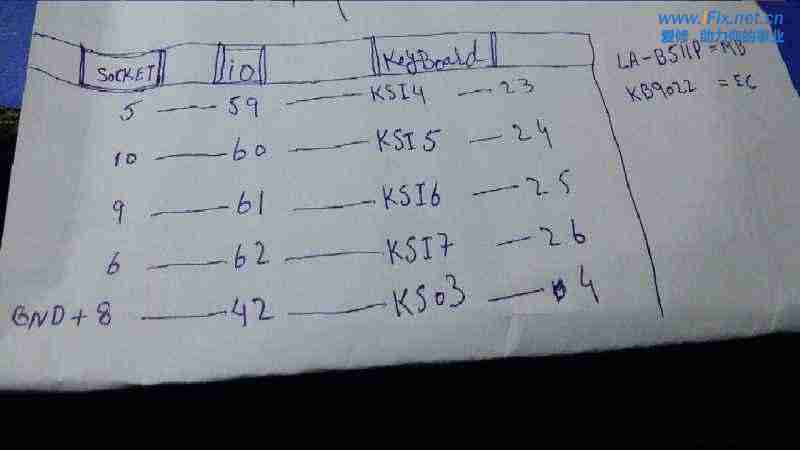

sir thanx for reply,i m a student,i use rt809f first time.all connection i do,but i do not under stand where i give 3,3volt,i mean which ec leg number or which resistor i give 3.3volt ,

compal_la-b511p_z5w1m_ea52_bm_uma_rev_1.0.pdf

1.15 MB, 下载次数: 1848, 下载积分: 金钱 -10

回复 支持 反对

使用道具 举报

 楼主| 发表于: 2016-4-13 08:50:29
| 显示全部楼层
mbm 发表于 2016-4-13 03:13
sir thanx for reply,i m a student,i use rt809f first time.all connection i do,but i do not under sta ...

Welcome, friend from Pakistan.
The mainboard can supply 3.3V for EC , if the AC adater for notebook  is plug in.

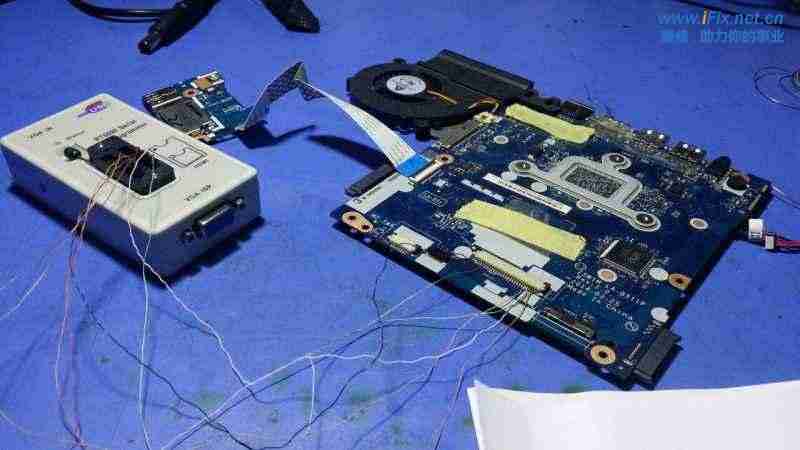

By the way ,those fly lines are too long!
回复 支持 反对

使用道具 举报
