上文跟大家讲了创维8H73机芯（海思方案）的刷机方法，还有一种故障现象是大家比较关注的，灰屏！
此机芯的屏参是保存在外挂的24C32（U0M1）中，所以刷写主程序是不会改变屏参的，这也是让很多维修员烦恼的过程，而灰屏故障又分为软件故障（屏参）和硬件故障，如何快速的区分是非常重要的！今天就跟大家聊聊此机芯安卓控制台下屏参调整方法。
大家现在知道屏参在U0M1中，有小伙伴问，直接更换24C32行不行？只要你有一模一样相同屏参数的主板，直接拷贝24C32内数据是可以的，不过这种情况不好遇到，咱们还是来点简单方法吧！
在介绍方法之前，先跟大家分享一下此机芯最新支持屏参表，此表是iFix君在最新固件内提取的，供大家参考。
index0----AUO_21_1920x1080_60Hz_2D index1----LG_37_1920x1080_60Hz_2D index2----LG_32_1366x768_60Hz_2D index3----LG_37_1920x1080_60Hz_3D_LR index4----LG_37_1920x1080_60Hz_3D_SBS index5----SKYWORTH_55_1920x1080_60Hz_3D_LR index6----TCL_V7500_1920x1080_60Hz_3D_LR index7----HISENSE_47_1920x1080_120Hz_3D_FS index8----CMO_V500_1920x1080_60Hz_3D_LR index9----A55_7626_T5500L_Y200_REL550WY_LD0_200 index10----VGA_1366x768_60Hz_2D index11----CMO_3840x2160_60Hz_3D_LR index12----G8200_7626_T4200L_Y400_REL420WY_LD0_001 index13----HI_PANEL_CSOT_3840x2160_60Hz_3D_FS index14----SKY_1920x1080_60Hz_LVDS_TO_VGA index15----SKY_3840x2160_LDM_18_10_108_AREA index16----G8200_7618_T4900L_Y110_SEL490WY_LD0_500 index17----G8200_7626_T5500L_Y170_REL550WY_LD0_100 index18----G8200_7626_T5500L_Localdimming index19----G8200_7626_T6500L_Y000_RDL650WY_LD0_000 index20----G8200_7626_T4900L_Y150_REL490WY_LD0_002 index21----G9200_7607_T49000_A010_LC490EGE_DHM2_PWM_INV index22----G9200_7607_T55004_A000_LC550EGE_DHM2_PWM_INV index23----G9200_7607_T65000_A020_LC650EGE_DHM2_PWM_INV index24----E6200_7608_T50000_A010_V500DJ2_KS5 index25----E6200_7608_T58000_A010_V580DJ2_KS5 index26----E6200_7608_T64500_A000_V650DJ4_KS5 index27----G8200_7626_T5500L_Y170_REL550WY_LD0_100_new index28----G9200_7607_T49000_A010_LC490EGE_DHM2 index29----G9200_7607_T55004_A000_LC550EGE_DHM2 index30----G9200_7607_T65000_A020_LC650EGE_DHM2 index31----G9200_7607-T49000-A020_LC490EGE_DHM2 index32----G9200_7607-T55004-A010_LC550EGE_DHM2 index33----G9200_7607-T65000-A030_LC650EGE_DHM2 index34----E6200_7626_T4900L_Y380_REL490WY_LD0_200 index35----E6200_7626_T6000L_Y050_RDL600WY_LD0_001 index36----Q7200_7659_T580QQ_Y000_V580DK2_QS1 index37----E6000_7618-T4300L-Y180_SDL430WY_LD0_000 index38----E6000_7626-T4900L-Y430_RDL490WY_LD0_000 index39----E6000_7626-T5500L-Y260_RDL550WY_LD0_000 index40----E8900_7608-T74500-A000_V750DK1-KS5 index41----E6000_7626-T4300L-Y080_RDL430WY_LD0_000 index42----E6000_7626-T4900L-Y530_RDL490WY_LD0_000 index43----E6000_7626_T5800Q_Y000_RDL580WY_QD0_000 index44----E6000_7626_T6500Q_Y000_RDL650WY_QD0_000 index45----E6000_7626-T4300L-Y170_RDL430WY_LD0_000 index46----E6000_7626_T6500Q_Y020_RDL650WY_QD0_001 index47----M6_7618-T4300L-Y010M6_SDL430WY_LD0_000 index48----M6_7626-T4900L-Y580M6_RDL490WY_LD0_000. index49----M6_7626-T5500L-Y340M6_RDL550WY_LD0_000 index50----M6_7626_T5800Q_Y020M6_RDL580WY_QD0_000 index51----G7200_7607-T49000-A030_LC490EGE_DHM4 index52----G7200_7607-T55004-A020_LC550EGE_DHM4 index53----E6000_7626-T4300L-Y140_RDL430WY_LD0_000 index54----E6000_7626-T5500L-Y310_RDL550WY_LD0_003 index55----E6000_7626-T5500L-Y360_RDL550WY_LD0_005 index56----E6000_7626-T4900L-Y590_RDL490WY_LD0_006 index57----M5_7618-T5000L-YTPTM5_LVA5000QVN02A index58----E6200_7626_T6000L_Y060_RDL600WY_LD0_002 index59----E6000_7626_T4900L_Y64089_RDL490WY_LD0_000 index60----E6000_7618-T5500L-Y350_SDL550WY_LD0_020 index61----E6000_7626_T4900B_Y000_RDL490WY_BD0_000 index62----E6000_7626_T5800Q_Y010_RDL580WY_QD0_001 index63----E6080_7626_T4900L_Y64080_RDL490WY_LD0_000 index64----M6_7626-T4900L-Y560M690_RDL490WY_LD0_000 index65----M6_7626-T5500L-Y400M6_RDL550WY_LD0_000 index66----E6080_7626-T4900L-Y56080_RDL490WY_LD0_000 index67----G7200_7607-T43000-A000_LC430EGE-DHM1 index68----E6000_7626_T6500Q_Y040_RDL650WY_QD0_000 index69----E6000_7626-T5500L-Y210_RDL550WY_LD0_000 index70----E600G_7626-T5500L-Y480_RDL550WY_LD0_00B index71----G9200_7607-T55004-A030_LC550EGE-DHM8 index72----G9200_7607-T65000-A040_LC650EGE-DHM8 index73----E6000_7626-T5500L-Y430_RDL550WY_LD0_008 index74----E6000_7626-T4300L-Y300_RDL430WY_LD0_006 index75----E6000_7626_T5800Q_Y040_RDL580WY_QD0_002 ndex76----E6000_7626-T4900L-Y710_RDL490WY_LD0_008 index77----E6000_7618-T4300L-Y030_SDL430WY_LD0_002 index78----E6000_7626-T5500L-Y420_RDL550WY_LD0_007 index79----E600G_7626-T4300L-Y300_RDL430WY_LD0_006 index80----E600G_7626-T4900L-Y800_RDL490WY_LD0_00A index81----E600G_7618-T4300L-Y080_SDL430WY_LD0_004 index82----SKY_LASER_1920x1080_60Hz_2D index83----E6000_7626-T4900L-Y740_RDL490WY_LD0_009 index84----E6000_7618-T5500C-Y050_SDL550WY_CD0_010 index85----E6000_7618-T4900L-Y250_SDL490WY_LD0_010 index86----M5_7626_T5000Q_YTPTM5_500DK_QS1_000 index87----L5000_7626-T4300L-Y140_RDL430WY_LD0_000 index88----L5100_7626-T4300L-Y140_RDL430WY_LD0_000 index89----L5000_7626_T5800Q_Y040_RDL580WY_QD0_002 index90----L5100_7626_T6500Q_Y040_RDL650WY_QD0_000 index91----F58_7626_T5800Q_Y040_RDL580WY_QD0_002 index92----E6000_7626-T5500B-Y010_RDL550WY_BD0_000 index93----E6200_7608_T58000_A020_V580DJ2_KS5_L2 index94----E6200_7608_T50000_A020_V500DJ2_KS5_L2 index95----M5_7626-T5500L-Y460_RDL550WY_BD0_000 index96----Z600F_7618-T4300L-Y060_SDL430WY_LD0_000 index97----M6_7626-T4900L-Y810_RDL490WY_LD0_000 index98----E6080_7626-T4900L-Y810_RDL490WY_LD0_000 index99----E6090_7626-T4900L-Y810_RDL490WY_LD0_000 index100----E6100_7626_T5800Q_Y070_RDL580WY_QD0_002 index101----M6_7626_T5800Q_Y050_RDL580WY_QD0_002 index102----V5_7626_T5000Q_YTPTV5_500DK_QS1_000 index103----G7200_7607-T60000-A000_LC600EGE_DJM1 index104----E6000_7626-T4900L-Y830_RDL490WY_LD0_100 index105----E6000_7618-T4300L-Y090_SDL430WY_LD0_010 index106----E6200_7626_T6000L_Y080_RDL600WY_LD0_001 index107----M5_7626_T50QS5_YTPTM5_500UK_DJ2QS5_000 index108----G7200_7626-T5500L-Y500_LC550EGE_DHM4 index109----V3200_7618-T3200C-Y320_SDL320HY_CD0_810 index110----M6_7626-T5500L-Y540_RDL550WY_LD0_00D index111----G7200_7626-T4900L-Y840_LC490EGE_DHM4 index112----E6000_7618-T6500L-Y000_SDL650WY_LD0_000 index113----VBO_HDMI_1920x1080_60Hz_2D_Asus index114----M6_7626-T4900L-Y920_RDL490WY_LD0_000 index115----E6080_7626-T4900L-Y920_RDL490WY_LD0_000 index116----E6090_7626-T4900L-Y920_RDL490WY_LD0_000 index117----E3500_7618_T5500C_Y090_SDL550FY_CD0_803_8H30 index118----SKY_LDM_240_3840_2160 index119----V5_7626_T50QS5_YTPTV5_500UK_DJ2QS5_000 index120----V5_7626-T5500L-Y540_RDL550WY_LD0_00D index121----M6_7618-T4300L-Y100_SDL430WY_LD0_010 index122----V5_7618-T5500L-Y350_SDL550WY_LD0_020 index123----E6000_7626-T5500L-Y520_RDL550WY_LD0_200 index124----E6000_7626-T4300L-Y370_RDL430WY_LD0_007 index125----E6000_7618_T5500B_Y070_SDL550WY_BD0_000 index126----E6000_7626_T6500Q_Y080_RDL650WY_QD0_003 index127----E6000_7626-T5500L-Y610_RDL550WY_LD0_200 index128----M5_7626-T5500L-Y630_RDL550WY_LD0_200 index129----V5_7626-T5500L-Y620_RDL550WY_LD0_200 index130----E6000_7626_T4900L_YAC0_RDL490WY_LD0_105 index131----V5_7618-T5500L-Y420_SDL550WY_LD0_020 index132----M5_7626-T5500L-Y690_RDL550WY_LD0_200 index133----M6_7626-T5500L-Y700_RDL550WY_LD0_200 index134----M6_7618-T4300L-Y130_SDL430WY_LD0_010 index135----G7200_7626-T5500L-Y65001_REL550WY_LD0_601 index136----G7200_7626-T4900L-YAH0_REL490WY_LD0_302 index137----E3500_7626_T5500L_Y660_RDL550FY_LD0_109 index138----C1_HV320WX2-206 index139----C1_LC430DUY-SHA1 index140----C1_V500HJ1-PE8(C7) index141----C1_HV550QUB-N80 index142----V5_7626-T5500L-Y740_RDL550WY_LD0_009 index143----SKY_1366_768_FLIP_MIRROR index144----E6000_7618_T4900L_Y260_SDL490WY_LD0_020 index145----E5_7626_T6000L_Y14001_RDL600WY_LD0 index146----M6_7626_T4900L_YAN0_RDL490WY_LD0_108 index147----E6080_7626_T4900L_YAN0_RDL490WY_LD0_108 index148----E6090_7626_T4900L_YAN0_RDL490WY_LD0_108 index149----M6_7626_T5500L_Y740_RDL550WY_LD0_205 index150----E600G_7618_T4300L_Y150_SDL430WY_LD0_012 index151----E600G_7626_T5500L_Y770_RDL550WY_LD0_207 index152----E5_7626_T4900L_YB7001_RDL490WY_LD0_020 index153----E600G_7626_T4900L_YAP0_RDL490WY_LD0_109 index154----M5_7618-T5500L-Y430_SDL550WY_LD0_020 index155----M6_7626_T5500L_Y79001_RDL550WY_LD0_205 index156----V5_7626_T5500L_Y79002_RDL550WY_LD0_205 index157----M5_7626_T5500L_Y79003_RDL550WY_LD0_205 index158----E6000_7626_T5500L_Y79004_RDL550WY_LD0_205 index159----E5_7626_T5500B_Y08001_RDL550WY_BD0_000 index160----E6000_7618-T6500B-Y000_SDL650WY_LD0_000 index161----E3500_7618_T5500C_Y090_SDL550FY_CD0_803_8H32 index162----E5_7626_T5500L_Y81001_RDL550WY_BD0_000 index163----E6000_7626_T4300L_Y800_RDL430WY_LD0_00A index164----E6000_7626_T6500Q_Y120_RDL650WY_QD0_004 index165----E6000_7626_T4900B_Y020_RDL490WY_BD0_000 index166----E6000_7626_T6500Q_Y130_RDL650WY_QD0_005 index167----V5_7618-T5500C-Y150_SDL550WY_CD0_010 index168----M6_7626_T6500Q_Y140_RDL650WY_QD0_006 index169----E6000_7626_T5800Q_Y120_RDL580WY_QD0_005 index170----M6_7618-T6500B-Y010_SDL650WY_LD0_000 index171----G7200_7626-T4300L-Y79001_REL430WY_LD0_200 index172----E3500_7626_T4000Q_Y500_RDL400FY_QD0_20N
一、查看当前屏参
从上面的屏参表可以看出，目前最新固件支持172种屏参，灰屏故障第一步，首先是要查看当前屏参是否跟自己的屏型号一致，不过在开始之前，先连接好编程器的串口，并打开“SecureCRT超级终端”。
开机完全启动后，按回车进入安卓控制台，控制台下输入i2c_read0 0xa0 0 2 3后回车，如下图：
可以看到回车后显示：0xA8，A8就是当前屏参选择项，这个A8到底是什么意思呢？A8其实是16进制显示，我们把它换算成十进制就知道了，那么怎么换算呢？告诉大家一个简单方法，用电脑附件自带的计算器就非常方便。
打开电脑计算器，点查看，选择程序员：
选左边的十六进制，然后点A8；
然后点左边十进制，上面就显示十进制的数字“168”，简单吧！
也就是说当前屏参为index168，查上表对应屏参 index168----M6_7626_T6500Q_Y140_RDL650WY_QD0_006
二、更改屏参
更改屏参前，查看172项屏参表，找到自己需要的屏参，例如我们要改屏参为 index170----M6_7618-T6500B-Y010_SDL650WY_LD0_000，那么输入如下命令：

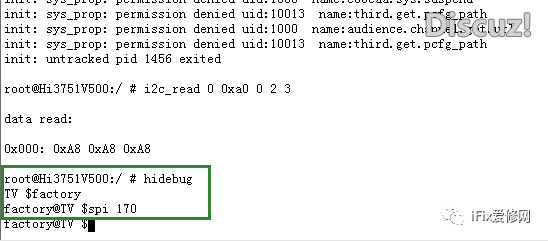

hidebug <回车> factory <回车> spi 170 <回车>

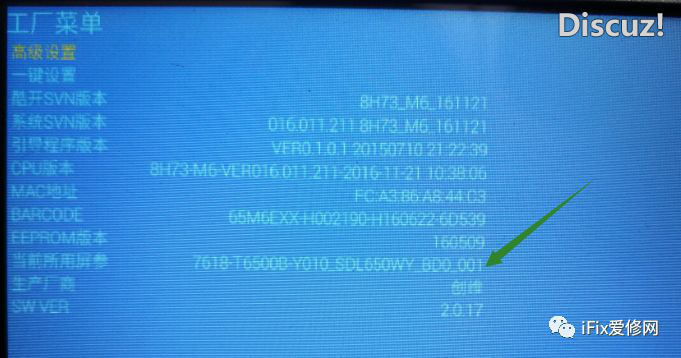

重启电源，进入工厂模式，查看一下当前屏参，在本机信息界面按方向键上上下下左右左右可进入工厂模式，如下图:
从上图，可以看出，屏参修改成功，正常显示，屏参修改知识你掌握了吗？下节我们再一起学习新的知识点吧！
关注iFix官方公众号：iFix_Aixiu, 选择爱修 技术无忧！
|
|
|
