RT809H教程--IT8580_IT8586_IT8585_IT8587_IT8985笔记本EC在线或离线读写

  [Copy link]
Post time: 2016-11-6 23:24:13
| Show all posts |Read mode
RT809H读写IT8系列EC的方法和809F_PEB类似,但不再需要PEB扩展板了,使用IT8系列简易转接板,直接从809H锁紧座即可离线或者在线读写,比PEB更容易ISP联机。使用方法可以参考:
http://www.ifix.net.cn/thread-47221-1-1.html
如何自行添加IT8系列EC在线读写线序:
https://v.qq.com/x/page/b0779qb6g49.html

IT8系列离线读写简易转接板
https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-13560919667.9.IVrepi&id=528659376845


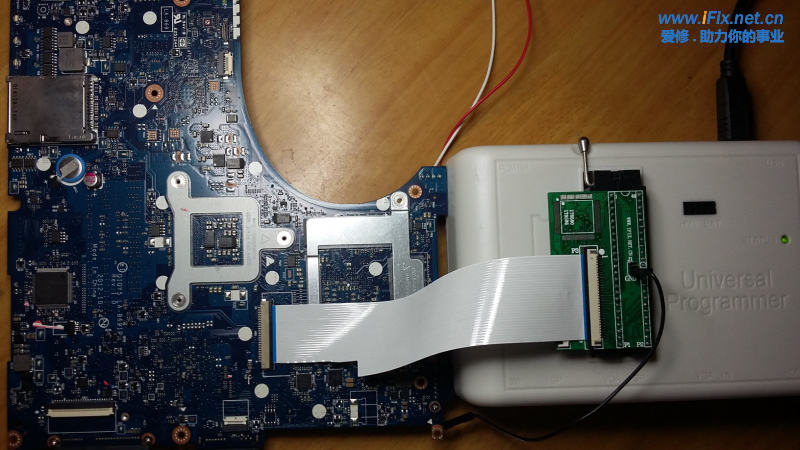

IT8系列在线读写排线和座
https://item.taobao.com/item.htm?spm=a1z10.3-c.w4002-13560919667.9.hv5nw1&id=528991495516


推荐购买标准的ITE转接板和连接器、排线套装,排线3条,0.5/0.8/1.0三种间距,24PIN同向,连接器是下接的。拆板的连接器和排线,因为标准不一,容易造成不连机问题。

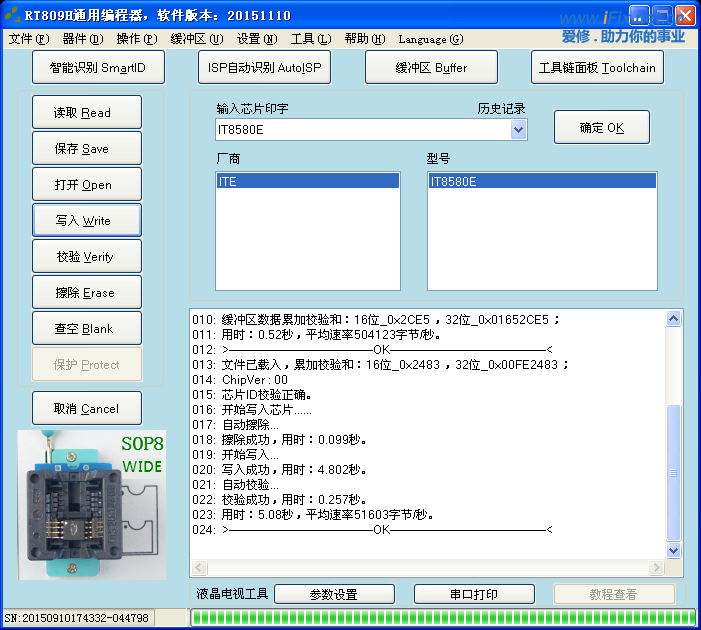

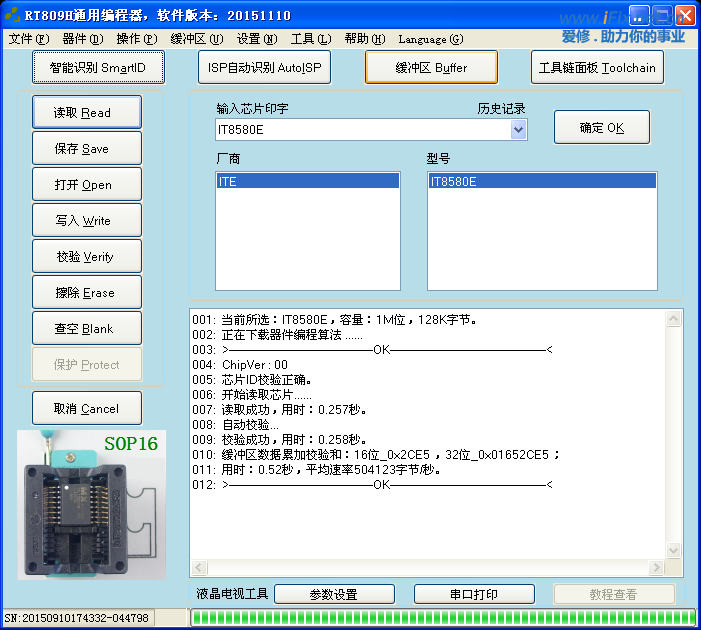

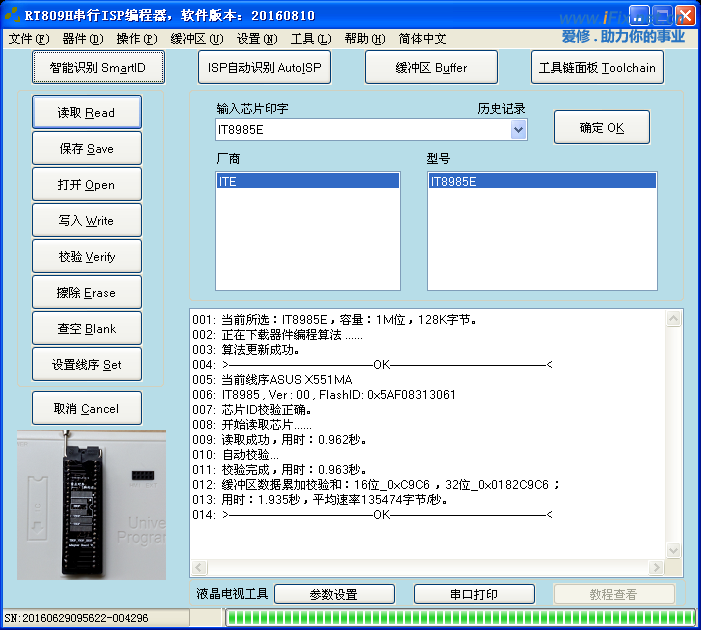

特别提醒:有用户反映,从Lenovo网站下载的BIOS文件分离出来的EC程序,直接写入IT8586E芯片,有可能导致芯片锁死,不能擦除或者不能联机。我们用809和ALL-200编程器都验证过客户发过来的文件,写入后发现确实存在这样的现象。而使用好主板读取出来的文件暂时未发现此问题(不排除厂家今后在固件里做手脚防读取),请各位务必注意EC文件来源。部分用户电脑USB口带负载能力不够,请自行准备DC9-12V的电源适配器,给编程器外接供电后再读写。





















Reply

Use magic Report

Post time: 2018-6-15 21:13:22
| Show all posts
我使用脫機適配器,但無法讀取或寫入IT8987E芯片。
我有兩個適配器來焊接和tssop!

但是在這兩種情況下,我都沒有在軟件中使用iT8987E型號,但是我認為我應該在其他型號上讀寫它!

如果連接有問題,請幫我設置適配器。

我請求幫助!

謝謝你!

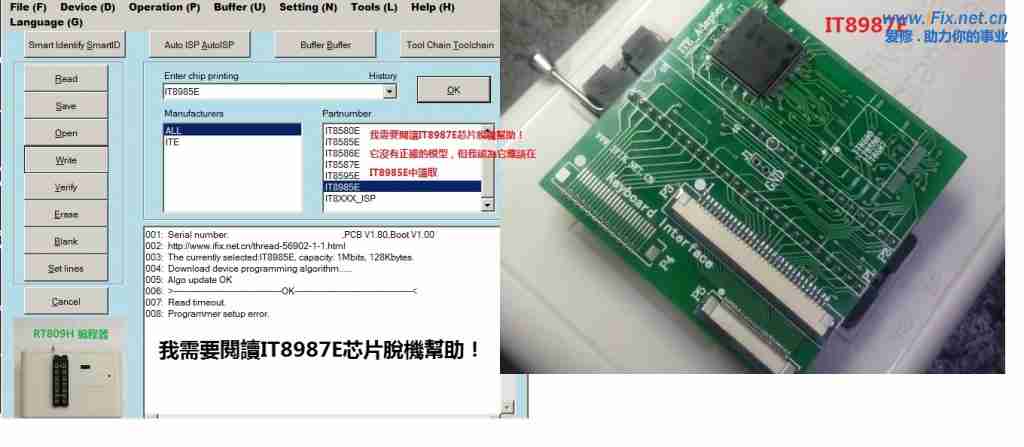

I need to read the IT8987E chip off line_help...jpg
