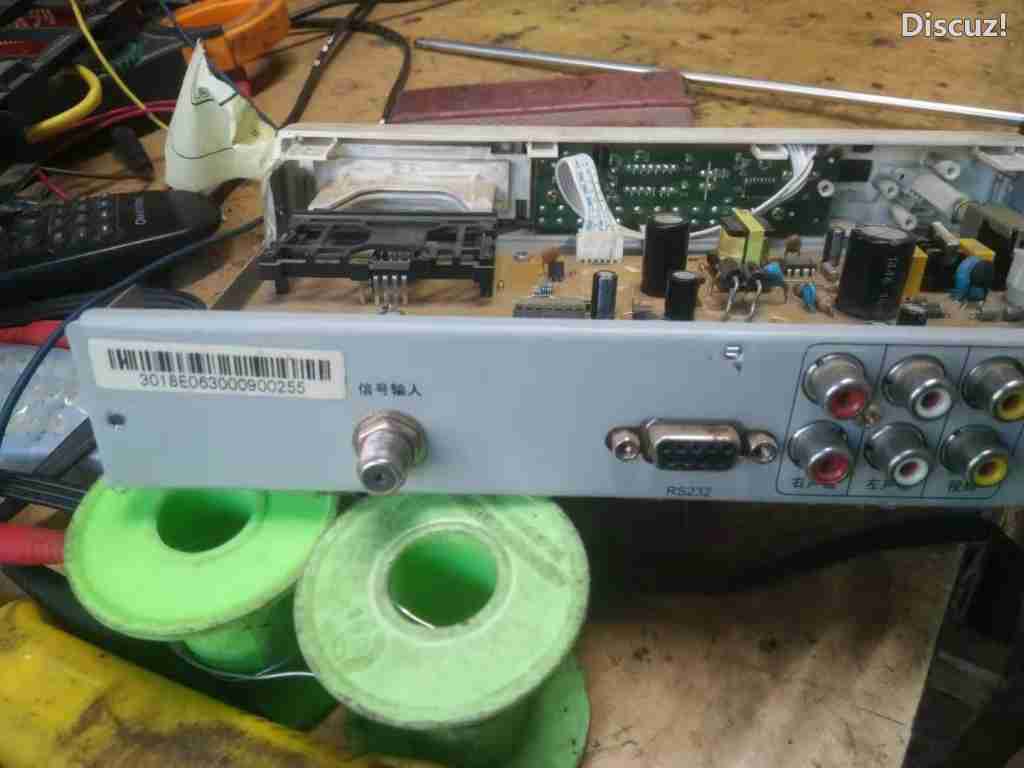

RT809F怎样和我这个数字机顶盒的RS232接口连接

[Copy link]
Post time: 2019-10-9 09:17:02
| Show all posts |Read mode
RT809F怎样和我这个数字机顶盒的RS232接口连接,想刷一下数据,不知怎样连接,希望大家帮助一下
Reply

Use magic Report

Post time: 2019-10-10 11:52:14
| Show all posts
想要通过串口在线刷的前提,请先找到机顶盒芯片方案的刷机软件平台。

如果找不到,那请查看程序块芯片是否在F的支持列表里,如果有,请拆下来选择合适的转接座进行读写。
Reply Support Not support

Use magic Report

Post time: 2019-10-10 20:03:20
| Show all posts
目前好像没有户户通机顶盒的在线刷机程序,您要刷数据的话就是把25Q64吹下来用转换座放在编程器上烧写数据,写好后再装回去。我刷过,吹下来不用植锡刷好后直接装上去OK

Comments

我这个是数字电视机顶盒  Post time 7 day(s) ago
Reply Support Not support

Use magic Report

Post time: 4 day(s) ago
| Show all posts
数字机顶盒,您看一下存储芯片是什么型号,好拆的话就拆下来放到编程器上刷写数据,您最好拍个主板的清晰图片大家才能帮忙出谋划策
Reply Support Not support

Use magic Report

 Author| Post time: 4 day(s) ago
| Show all posts
一心通讯 2019-10-15 08:14
数字机顶盒,您看一下存储芯片是什么型号,好拆的话就拆下来放到编程器上刷写数据,您最好拍个主板的清晰图片大家才能帮忙出谋划策

存储芯片型号是25L3233F
Reply Support Not support

Use magic Report

 Author| Post time: 4 day(s) ago
| Show all posts

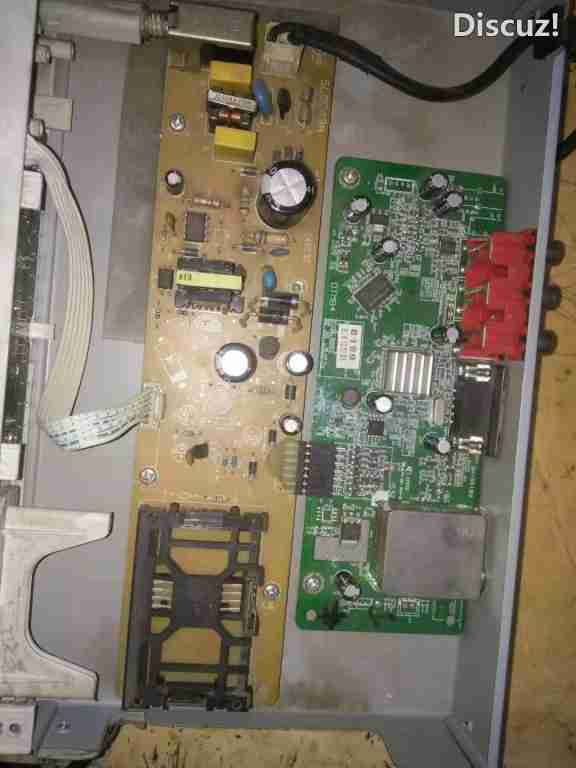

上传个图片让大家帮助分析一下

Comments

玩有线机顶盒,有意义吗?你想刷着玩就看看那个8条脚的是啥子玩意?  Post time 4 day(s) ago
Reply Support Not support
