Please Help

[Copy link]
Post time: 3 day(s) ago
| Show all posts |Read mode
Can you kindly help me ascertaining what could be wrong with a motherboard that has the following printout?


001:  https://www.facebook.com/profile.php?id=100034063062312
002:  https://www.youtube.com/channel/ ... ?view_as=subscriber
003:  Serial number:20190630094359-002790  ,PCB V1.80,Boot V1.00
004:  >------------------------------------OK---------------------------------------<
005:  Using Mode-A to scan VGA port...
006:  MSTAR solution, part number starting with MST¡¢TSUM¡¢SE¡¢FE£¬their program is inside the external SPI flash memory¡£
007:  The currently selected:MST_EXT_SPI #ISP, capacity: 128Mbits, 16Mbytes.
008:  http://www.ifix.net.cn/thread-14392-1-8.html
009:  >------------------------------------OK---------------------------------------<
010:  C:\Users\skhue\Desktop\Print.log
011:  COM4, BaudRate:115200 bps, RXD: VGA->12,TXD: VGA->15,

AC_ON
AutoDQS0-[3456789ABCD][3456789ABC][23456789AB][23456789ABC]-[0x7678]
AutoDQS1-[3456789ABCDEF][3456789ABCD][23456789ABC][23456789ABCD]-[0x7789]
BIST0-OK
BIST1-OK
_AUTHEN_OK

EMM
CHUNK_A_fail
Reply

Use magic Report

Post time: The day before yesterday 10:04
| Show all posts
There is an error in the data block. It is suggested to try to replace the data first. It is not excluded that the emmc chip is damaged
Reply Support Not support

Use magic Report

 Author| Post time: The day before yesterday 18:26
| Show all posts
技术支持008 2020-5-23 10:04
There is an error in the data block. It is suggested to try to replace the data first. It is not exc ...

Thank you very much, i am still trying to understand the print out on these smart tvs. I will check and revert.
Reply Support Not support

Use magic Report

Post time: The day before yesterday 18:38
| Show all posts

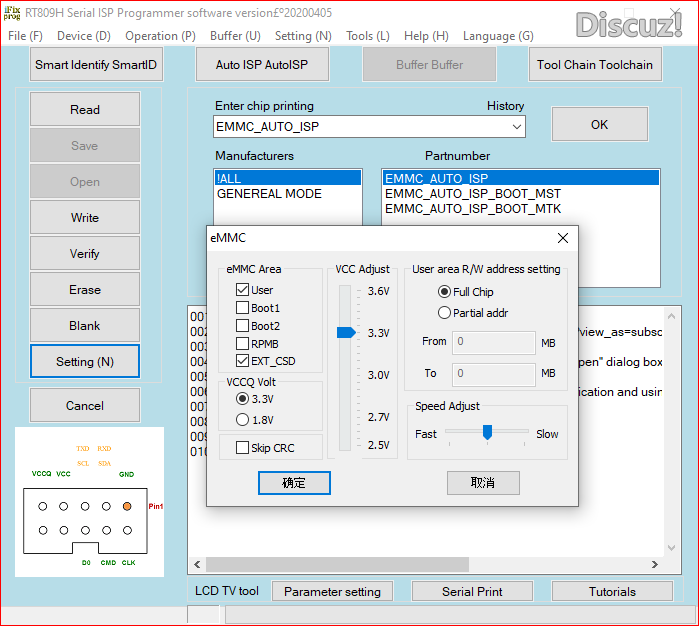

After looking at your uploaded data posts, only boot1 boiot2 was uploaded                                                                              Mstar: only the boot1 and user areas have files.
MTK RTD AMLOGIC HISI only has files in the user area.                                                                                                                 It is no use backing up boot1 and boot2, but you should also back up the user area.
Reply Support Not support

Use magic Report
